User interface explained

Process Details

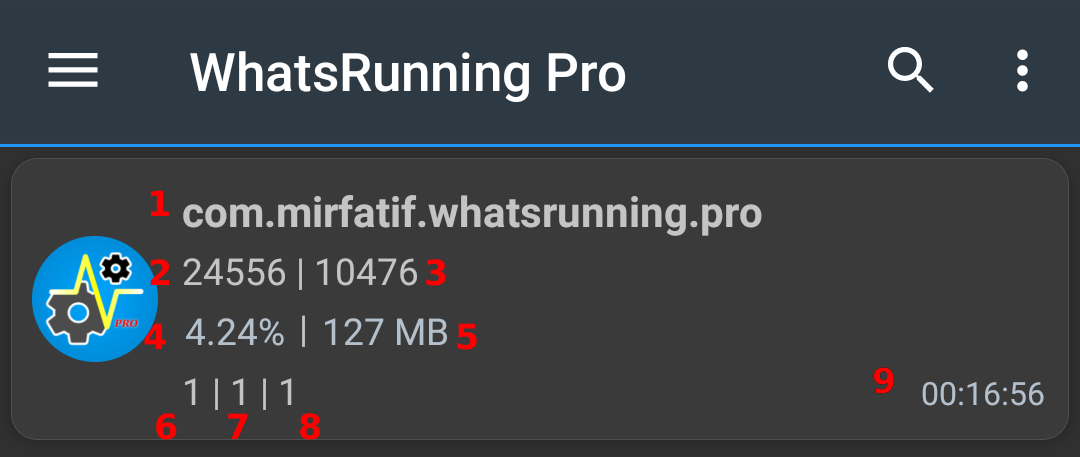

Android process detail

  1. Process name (commandline)
  2. PID
  3. UID / GID
  4. CPU usage
  5. RAM / swap usage
  6. Android app packages count
  7. App tasks (activities) count
  8. App services count
  9. Process age

For more verbose details, please see screenshots.

Memory Info

Please see the details here.

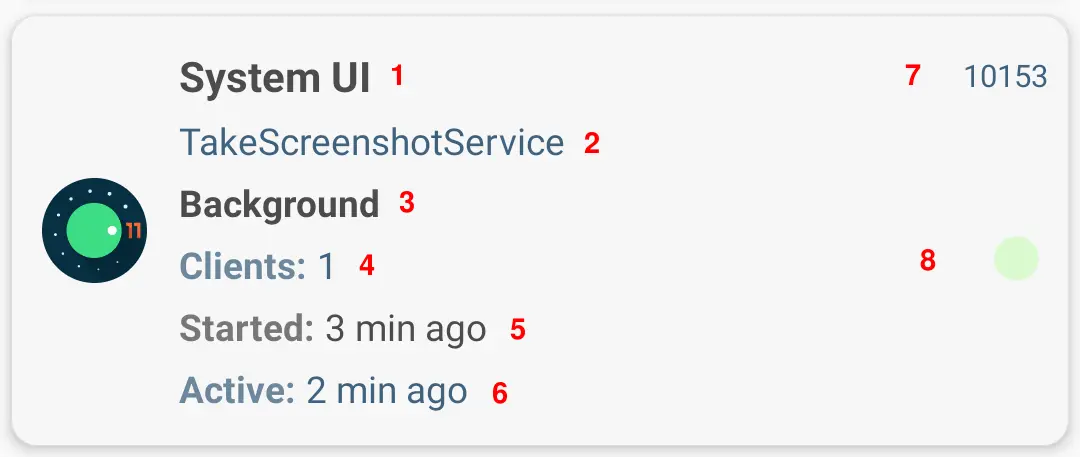

App Services

App services detail

  1. App name
  2. Service name
  3. Service type: background, foreground, system, persistent etc.
  4. Number of client apps bound to the service
  5. When the service was started
  6. When the service was last active
  7. App UID
  8. App state: running or stopped

Active Apps

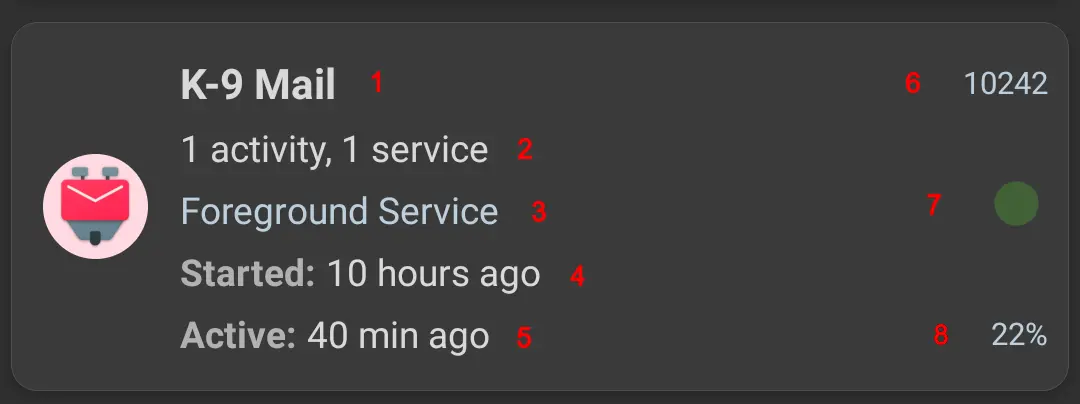

Active apps detail

  1. App name
  2. Count of activities (screens) and services running in the app
  3. App importance
  4. When the app started
  5. When the app was last active
  6. App UID
  7. App state: very active, less active, or inactive
  8. Kill score - chances of the app being killed when the device needs to spare RAM

App State Log

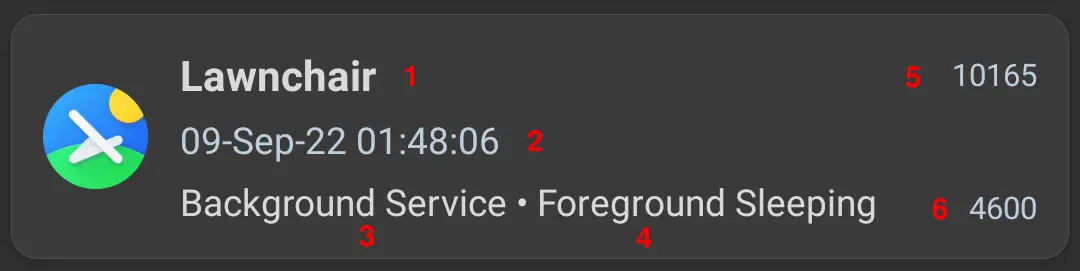

App state log detail

  1. App name
  2. Timestamp - when the app changed its state
  3. New state (of app package)
  4. New state (of app UID)
  5. App UID
  6. App process PID

Summary view

Summary view shows how many times the app has switched to a state since the App State Log was enabled.

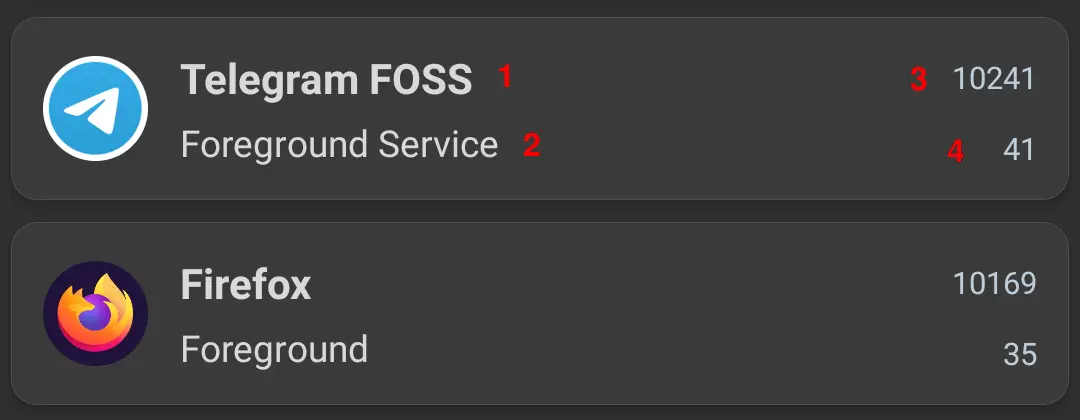

App state log summary

  1. App name
  2. New state
  3. App UID
  4. Count

The screenshot shows that the Telegram app has switched to "Foreground Service" state 41 times while the Firefox was opened (switched to "Foreground" state) 35 times.

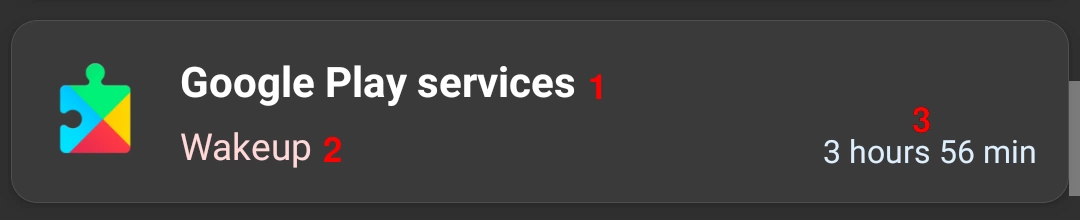

Alarms

Android alarm detail

  1. App name
  2. If the alarm will wake up the device
  3. When will the alarm be raised

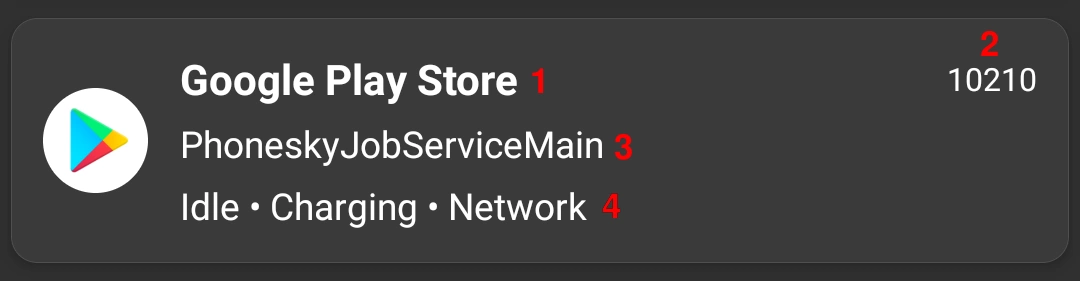

Scheduled Jobs

Android scheduled job

  1. App name
  2. UID
  3. Job service name
  4. Conditions which must meet before the job is run

Auto-Starting Apps

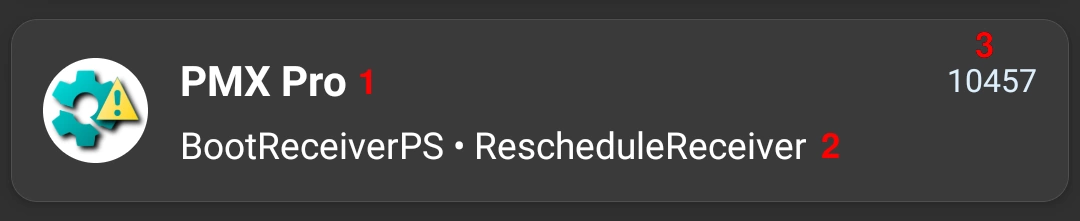

Android auto start app

  1. App name
  2. Broadcast receiver(s) name
  3. UID

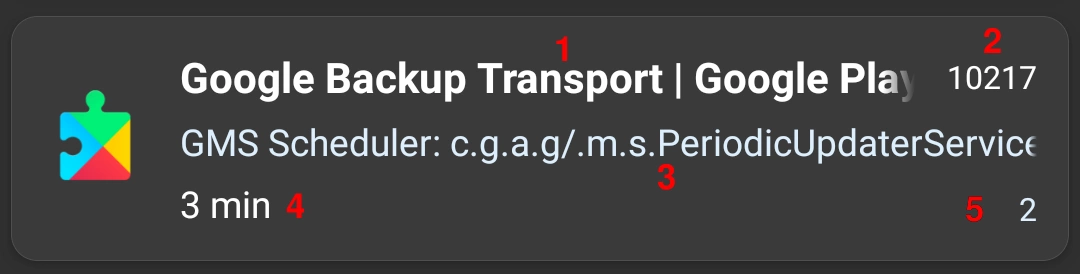

Wake Locks

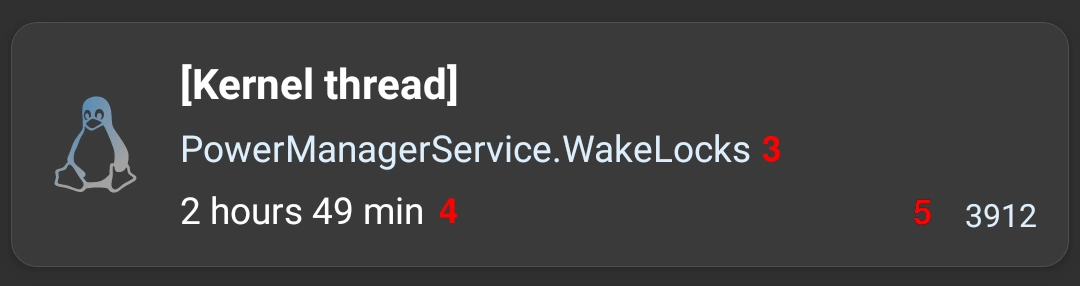

Android wake lock Android kernel wake lock

  1. App name
  2. UID
  3. Wake lock name
  4. Duration (for how long the lock was held)
  5. Count (how many times the lock was held)

Wakeup Calls

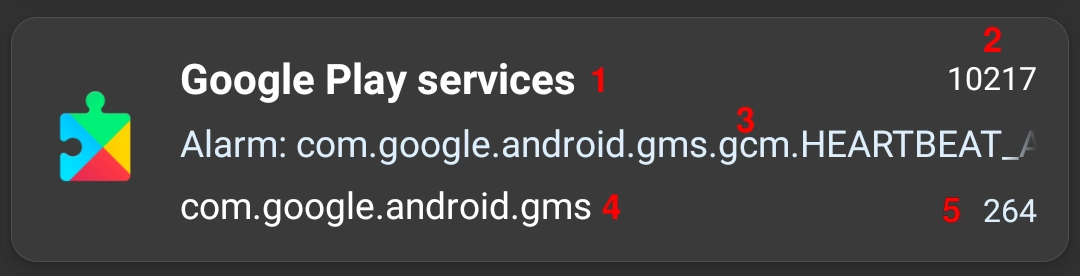

Android wakeup call

  1. App name
  2. UID
  3. Alarm name which woke up the device
  4. App package name
  5. Wakeup count

Battery Hogs

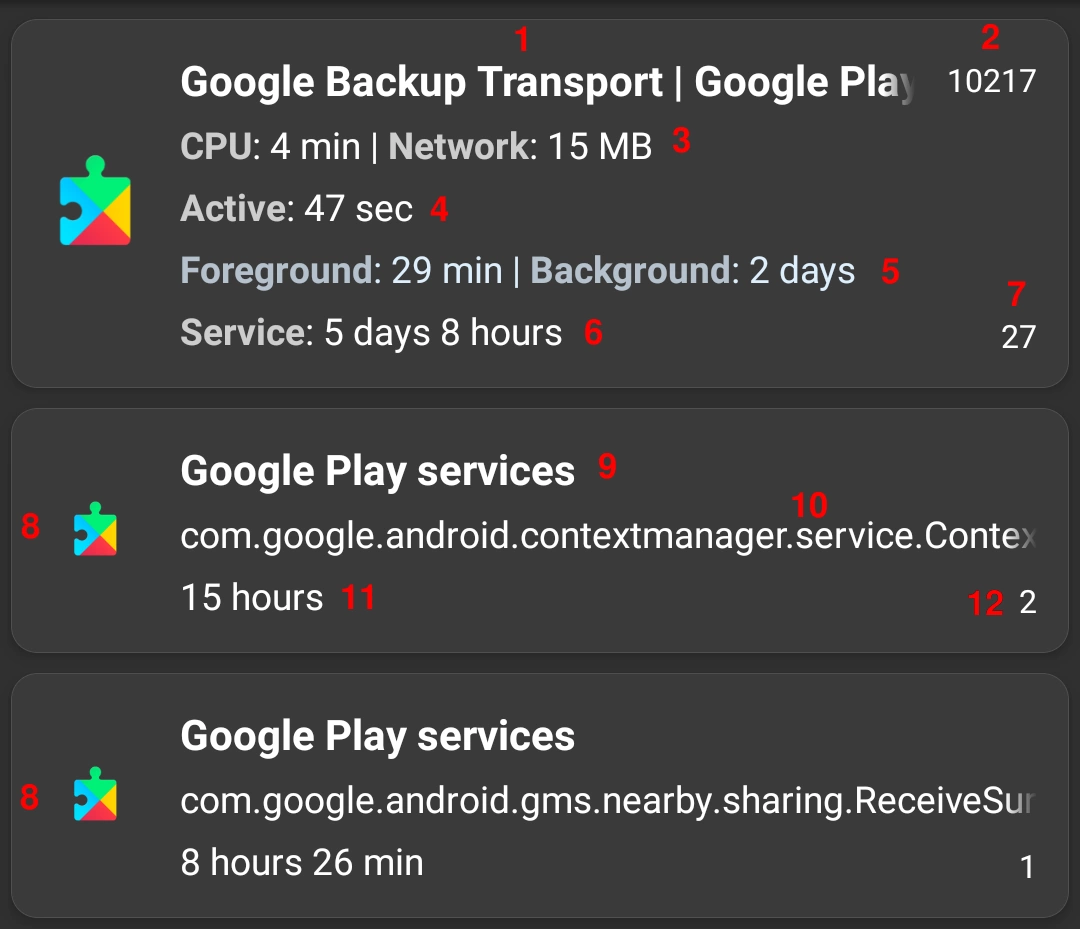

Android battery hogs

  1. App name
  2. UID
  3. CPU and network usage
  4. App's active usage duration
  5. App's foreground (high priority) and background (low priority) activity duration
  6. Started services total duration
  7. Started services count
  8. Started service (shown only if enabled in drop-down menu)
  9. App name
  10. Service name
  11. Started service duration
  12. Service start count

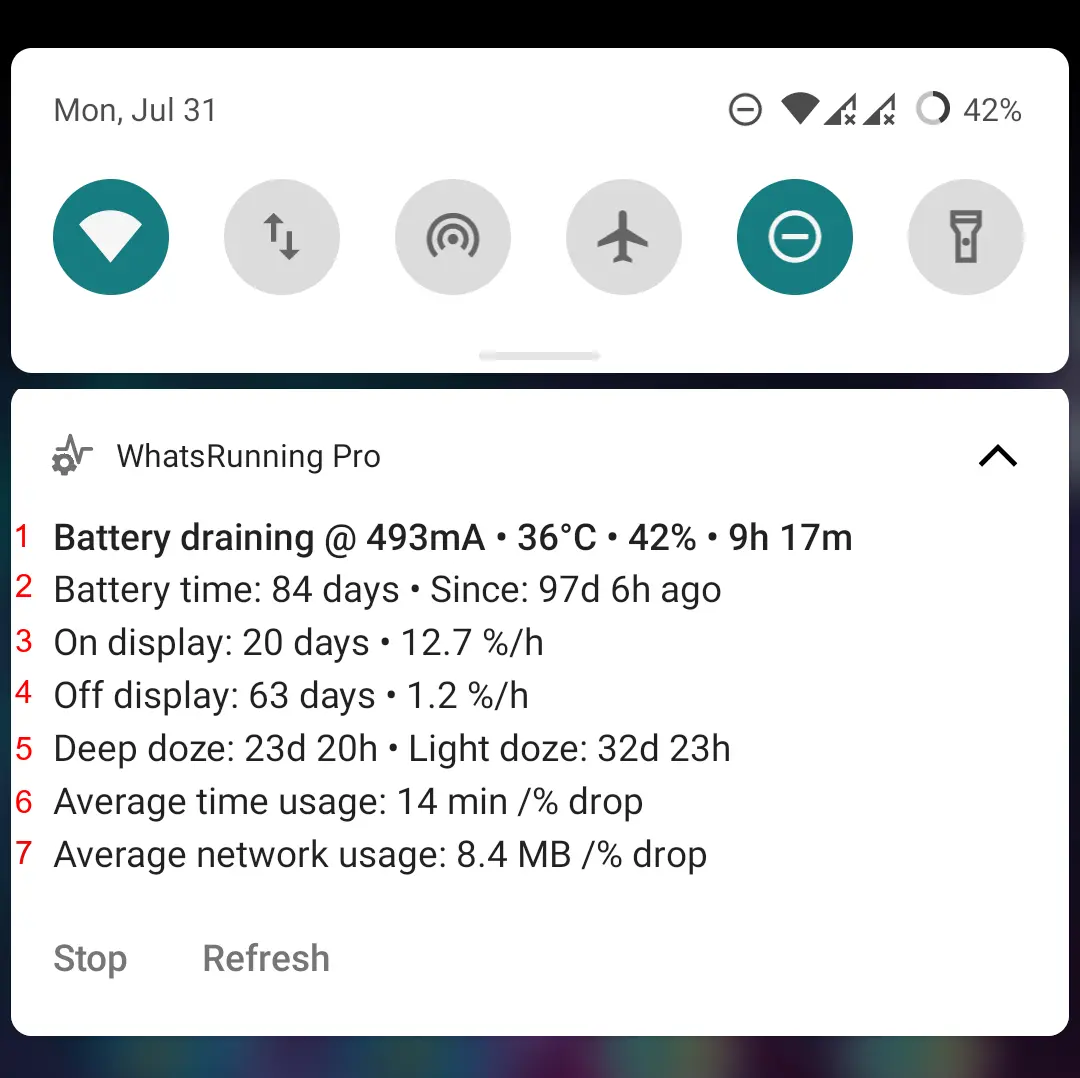

Battery Watcher service shows a persistent notification with battery stats:

Android battery watcher

  1. Battery drain or charge rate; temperature; level; and estimated time (to fully drained or fully charged)
  2. How long the device has run on battery out of total time
  3. Battery time when display was on; percentage battery drop per hour
  4. Battery time when display was off; percentage battery drop per hour
  5. Battery time when device was dozing
  6. Average battery time per percentage battery drop
  7. Average network usage per percentage battery drop

Battery stats can be reset from the top right menu of Battery Hogs screen.
